Description

CP 1290 Series: The Heavyweight Champions of Demolition

When the job calls for raw power and uncompromising durability, the CP 1290 Series delivers. Engineered for the toughest demolition environments—from heavy highway repairs to reinforced concrete removal—these pneumatic breakers are the industry standard for performance and reliability.

Whether you need a classic workhorse or a high-tech vibration-reduced powerhouse, the CP 1290 family has a configuration tailored to your crew’s needs.

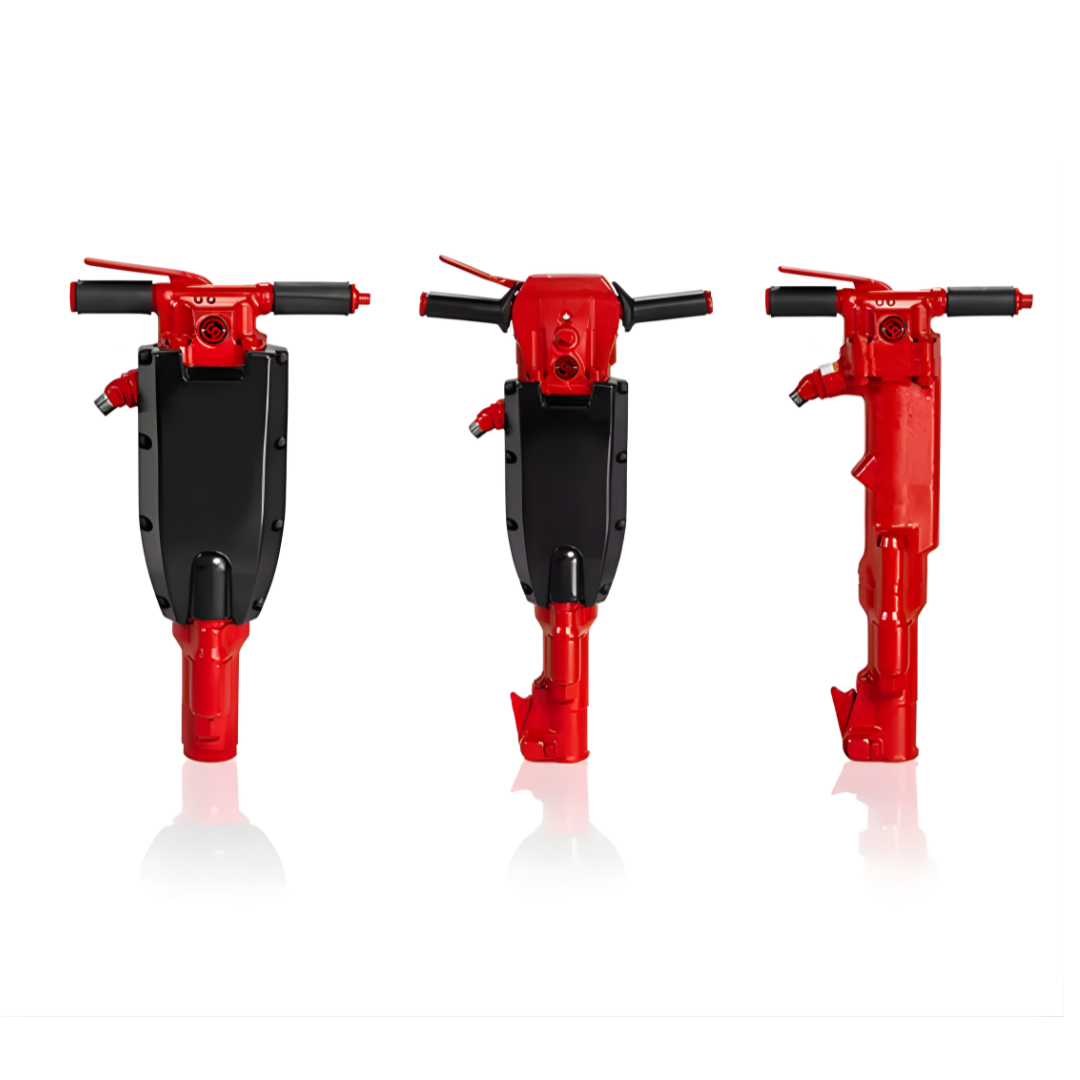

Choose Your Model

Feature	CP 1290	CP 1290 S	CP 1290 SVR
Primary Focus	Maximum Power	Power + Noise Reduction	Power + Max Operator Comfort
Muffler	No	Yes (Standard)	Yes (Advanced)
Vibration Damping	Standard	Standard	Vibration Reduced (SVR)
Weight Class	90 lb	90 lb	90 lb

Key Features & Benefits

• Forged Steel Durability: Built with a rugged, four-bolt backhead design that withstands the most demanding job site conditions.

• Optimum Power-to-Weight Ratio: Delivers massive impact energy without being unnecessarily bulky, ensuring maximum productivity per blow.

• Integral Oil Reservoir: Features a built-in lubricator to ensure continuous internal lubrication, extending the life of the piston and cylinder.

• Ergonomic Handling: Designed with a slim profile for better visibility and a swivel air inlet for improved maneuverability.



Specialized Variations

CP 1290 S (Silenced)

Equipped with a heavy-duty muffler, the “S” model significantly reduces noise levels without sacrificing hitting power. This is the ideal choice for urban job sites or projects with strict noise ordinances.

CP 1290 SVR (Vibration Reduced)

The SVR is the pinnacle of operator safety and comfort. It features a Vibration Reduced Housing that isolates the handles from the impact mechanism.

• Reduces Fatigue: Allows operators to work longer shifts with less physical strain.

• Protects Health: Minimizes the risk of long-term vibration-related injuries (HAVS).

Technical Specifications

• Chuck Size: 1-1/8″ x 6″ or 1-1/4″ x 6″

• Impact Rate: 1,100 bpm

• Air Consumption: 91 cfm (43 l/s)

• Length: 28.7 inches (730 mm)

Pro Tip: To maximize the lifespan of your CP 1290, always use a dedicated in-line lubricator and moisture separator to keep your air supply clean and oiled.
