Description

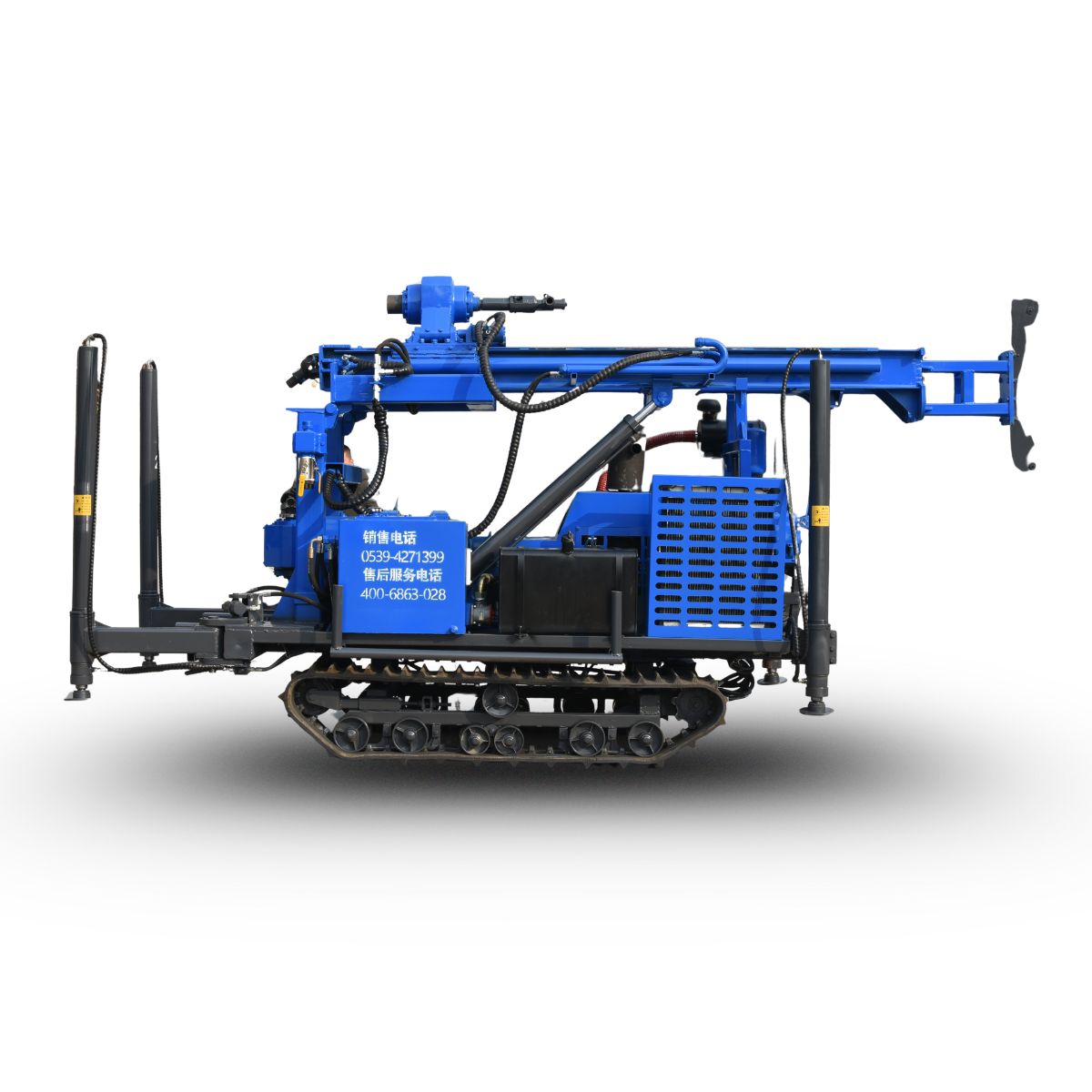

Topdrive Mechanical Rotary Crawler Type

TDMR200CT SPECIFICATIONS AND FEATURES

1. The rig speed range is 33–1120r/min, and the maximum output torque is 9800N.m.

2. The drilling machine adopts a long-stroke speed doubling mechanism and a mechanical power head with a stroke of 2300MM, which is used to improve drilling efficiency and reduce the occurrence of drilling blocking and burning accidents.

3. The rig uses double oil pump for oil supply, single pump is used when drilling, and the combined flow of double pump is used when lifting drill. Less power loss, short auxiliary time.

TECHNICAL PARAMETERS

• Drilling capacity – Drilling depth for water well 200m 100mm–250mm

• Wireline coring N size 500m

• Borehole (Drill bit) Ø100 Ø350mm

• Drilling angle 90°

• Drive head – Lifting capacity 100KN

• Thrusting capacity 50KN

• Rotary speed RPM Forward:
  33, 63, 113, 163, 192, 237, 303, 537, 906, 1120 r/min

• Reversal 37, 180 r/min

• Max. Torque 9800N.m

• Power Unit – Engine Model YUNNIE Yn27

• Rated power/speed 42kW/2400r/min

• Recommended Drill pipe diameter: 060/076 or NQ/HQ/PQ

• Drill pipe length 2000mm

• Recommended Air compressor

• Air consumption 16–35m³/min

• Air pressure 10.5–24.6bar

• Crawler chassis – Walking speed 0–2km/h

• Climbing angle Max. 25°–30°

• Dimension Transport: 460019002540mm

• Working: 380022005700mm

• Mechanical winch capacity 4.5 Ton

• Recommended Mud pump: Centrifugal/Piston type BW160/BW200/BW250

• Centrifugal 2.5 x2/3×3

• Weight with steel crawler 5500kg
